1000W Solar Wind Hybrid Kit 12V Battery Charger: 5Pcs 120W Monocrystalline Solar Panel,400W Wind Turbine Generator,Hybrid MPPT Charge Controller & 1000W Inverter & Brackets
1000W Solar Wind Hybrid Kit 12V Battery Charger: 5Pcs 120W Monocrystalline Solar Panel,400W Wind Turbine Generator,Hybrid MPPT Charge Controller & 1000W Inverter & Brackets
Product description
1000 Watts Wind-solar Complementary Power Generation Off-Grid System

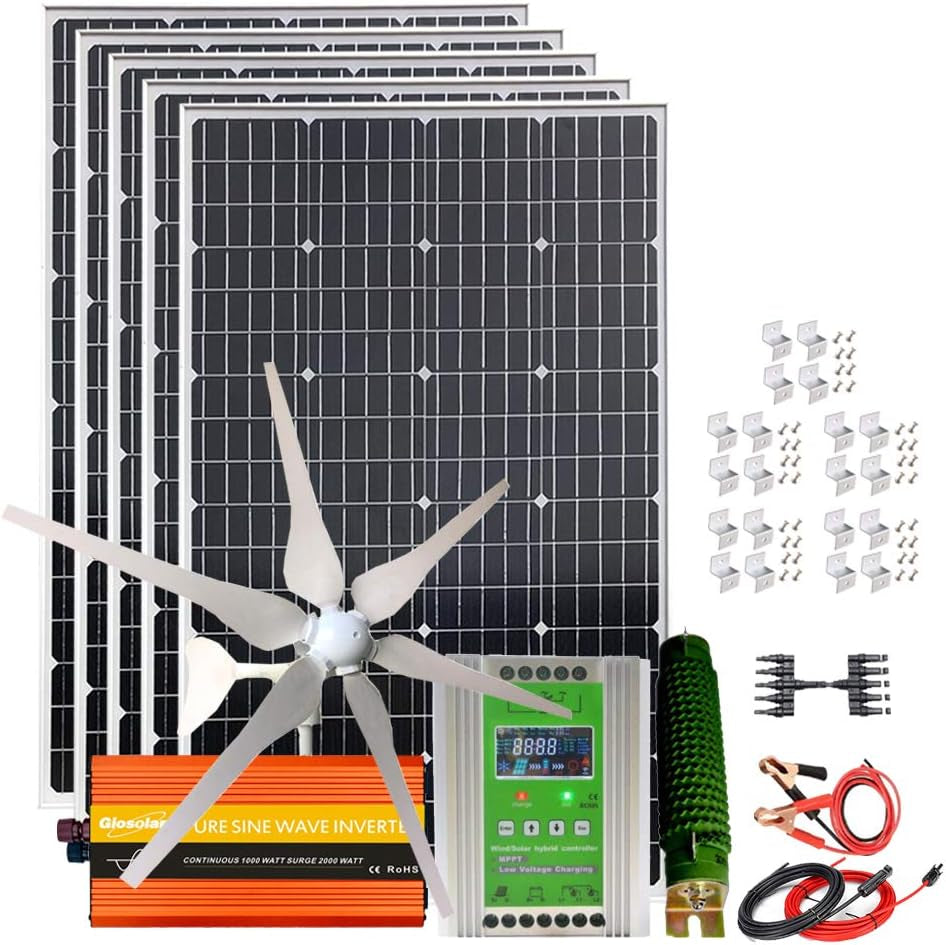

The Giosolar 1000W 12V Solar Wind kit include:
- 5x 120W Monocrystalline solar panel attached with 90mm of solar cable and waterproof connectors
- 1x 400W 12V Wind Turbine Generator
- 1x Solar Wind Hybrid MPPT Charge Controller
- 1x 1000W Peak 2000W Pure Sine Wave Power Inverter
- 1x 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 1x 3M battery cable with alligator clip (red about 1.5m, black about 1.5m)
- 5x Z Mounting Brackets Set
- 1 Pair of Y Branch Connectors

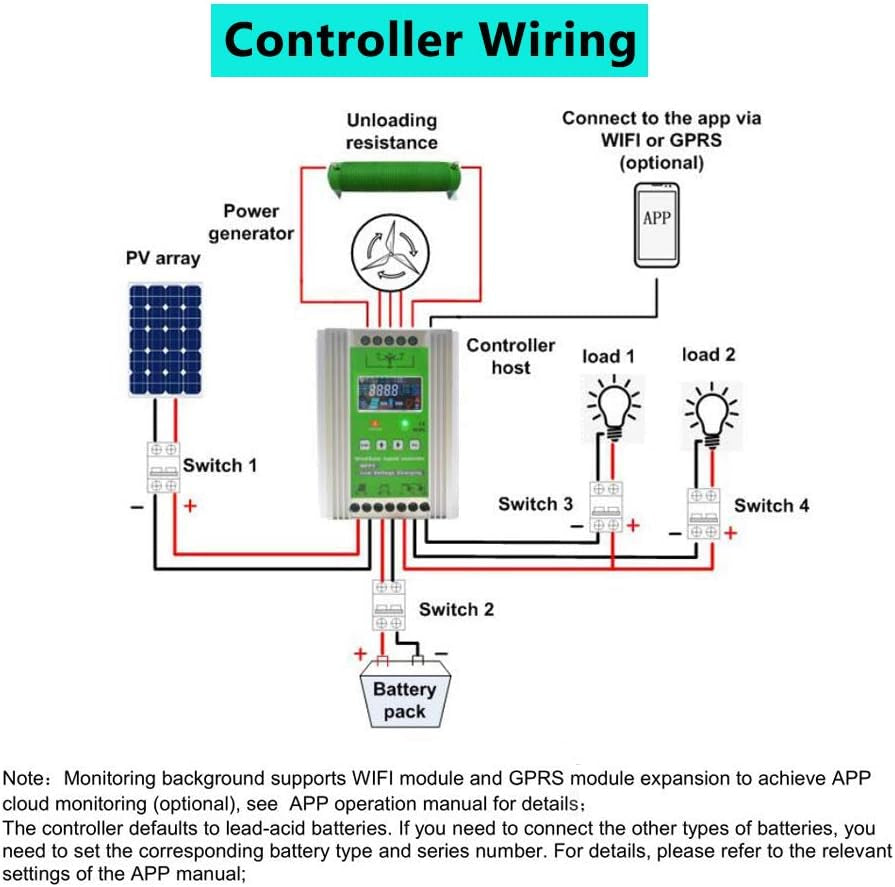

Wiring Diagram
MPPT Hybrid Charge Controller Features:
>The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
>The MPPT control algorithm used for fan charging ensures MPPT charging at low wind speed.
>Fan three-stage charging mode:MPPT charging-lifting charging-floating charging.
>Photovoltaic three-stage charging mode:CC constant current-lifting charging-floating charging.
>12V/24V battery system automatically recognizes
>RS485 communication can provide communication protocol to facitilate unified management and secondary development for customer.
>comprehensive protection functions such as overcharge, over discharge and overload;
> Lead-acid battery, ternary lithium battery, lithium iron phosphate, custom four battery types charging mode to choosing;
Giosolar 400W Wind Turbine Generator
High Efficiency
·Perfect for green windmill, homes, businesses, and industrial energy supplementation
·a useful addition to solar energy
Weatherproof
·Corrosion-resistant
·High Temperature & Severe Cold Resistant
·Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape.
Durable
·High temperature resistant Teflon wire
·Increased Power conversion rate
400W Windmill Specification:

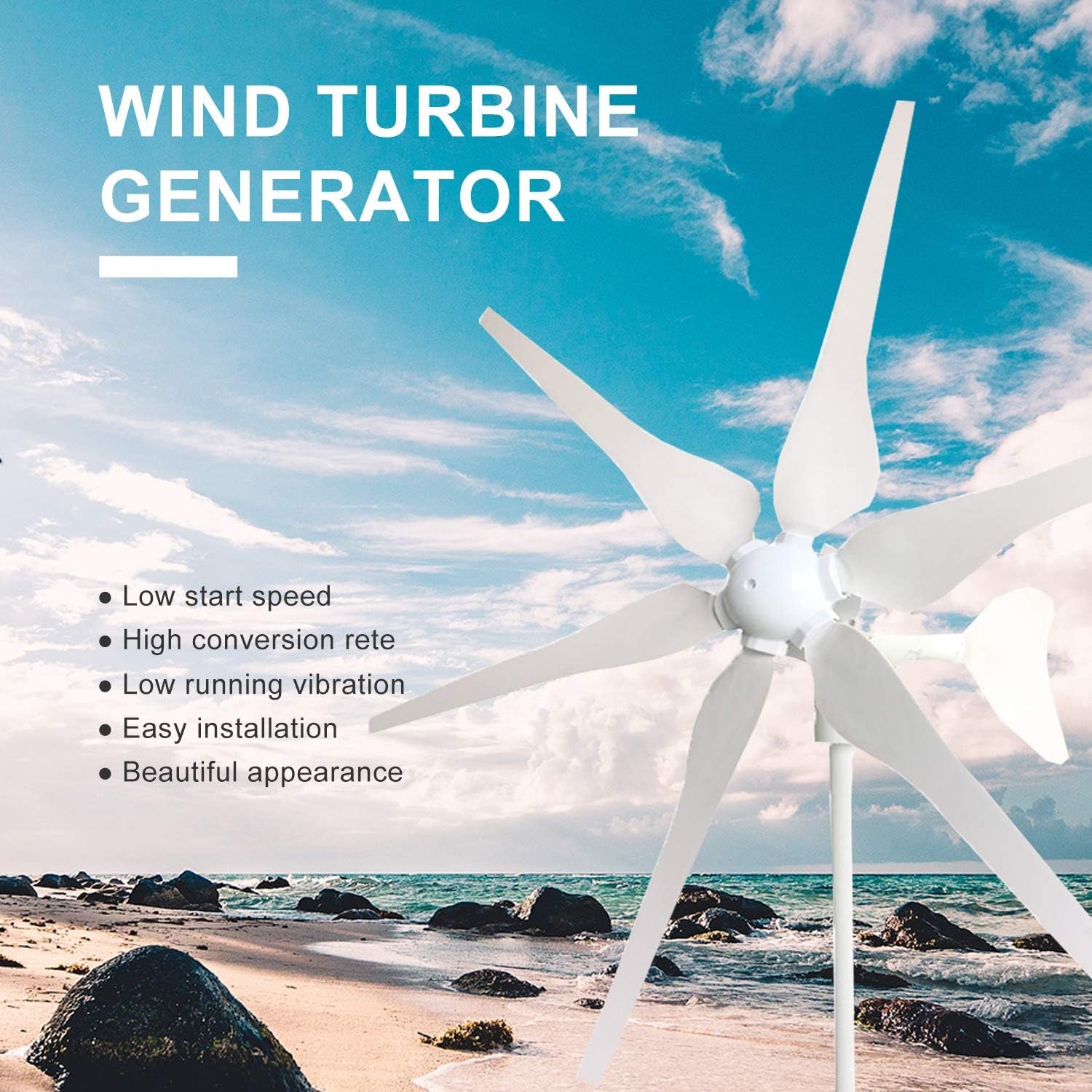

Features
- 1. Beautiful Appearance
- 2. Aluminum alloy body
- 3. Low Start Speed
- 4. High conversion rate
- 5. Low running vibration
- 6. Easy installation
Parameters
- Rated power 400W
- Rated DC voltage AC 12V/24V
- Rated current 32A/16A
- Rated speed 1350r/m
- Max power 420W
- Number of blade 6pcs
- Starting wind speed 2.5m/s
- Cut-in wind speed 3m/s
- Cut-out wind speed15m/s
- Security wind speed 45m/s
-Rated wind speed 12m/s
-Engine Three-phase permanent magnel generator
-Rotor diameter 1160mm
-Blade material Carbon fiber
-Output line anti-winding device Overall three-phase commutator
-Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
-Equipment surface protection Aluminum oxide + plastic coating
-Working temperature -45° C-70° C
-Packing dimension 720*390*210mm
-G.W. 12kg

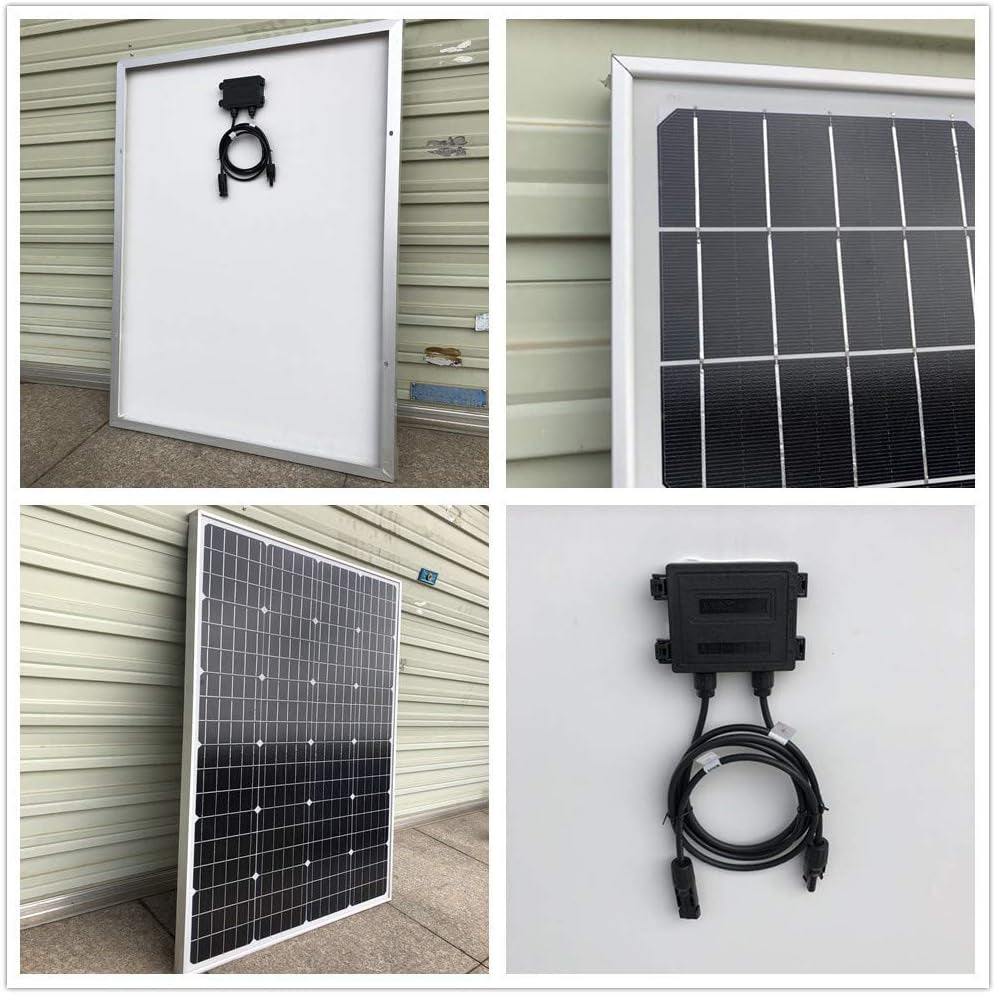

Why Choose Giosolar 120W Glass Solar Panel ?
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
- Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades

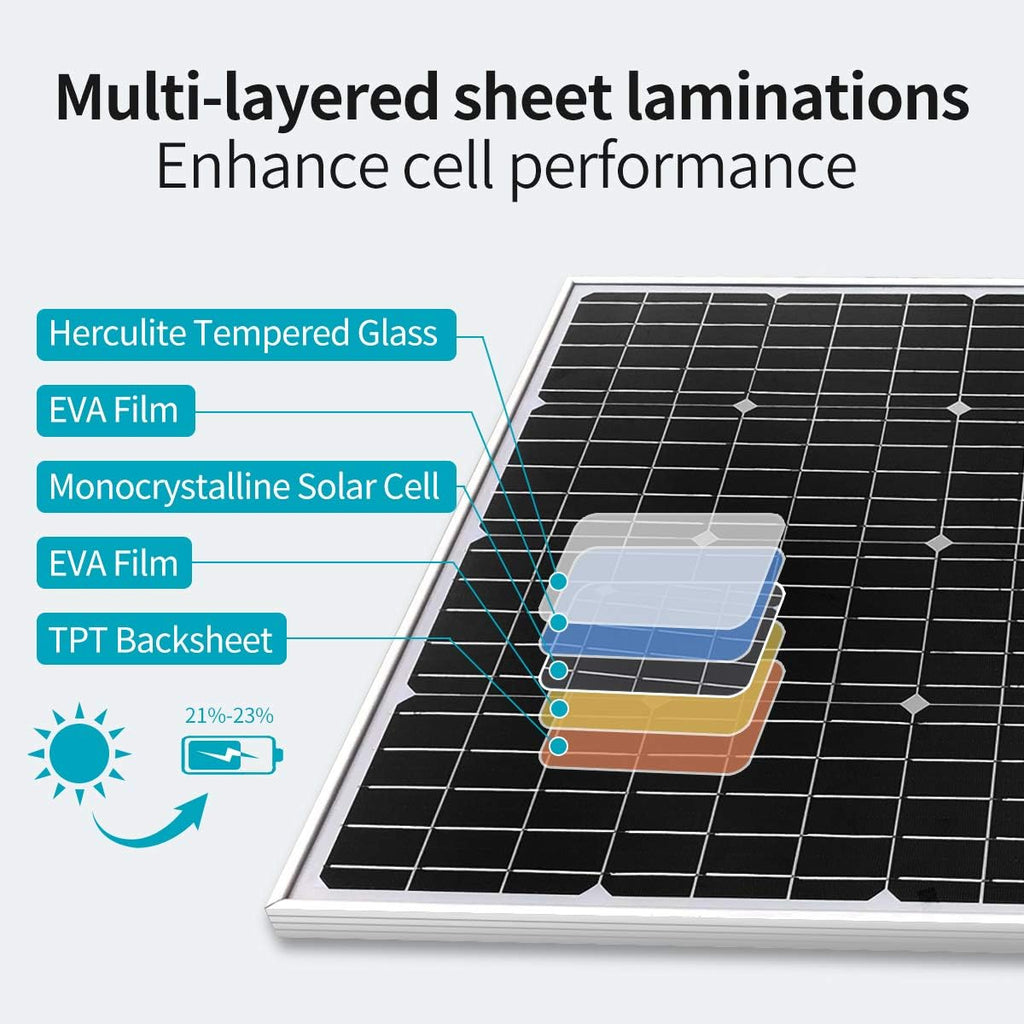

- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Parameters
- Maximum Power: 120W
- Optimum Operating Voltage (Vmp): 18 V
- Open-Circuit Voltage (Voc): 21.2 V
- Optimum Operating Current (Imp): 6.67 A
- Short-Circuit Current (Isc): 7.23A

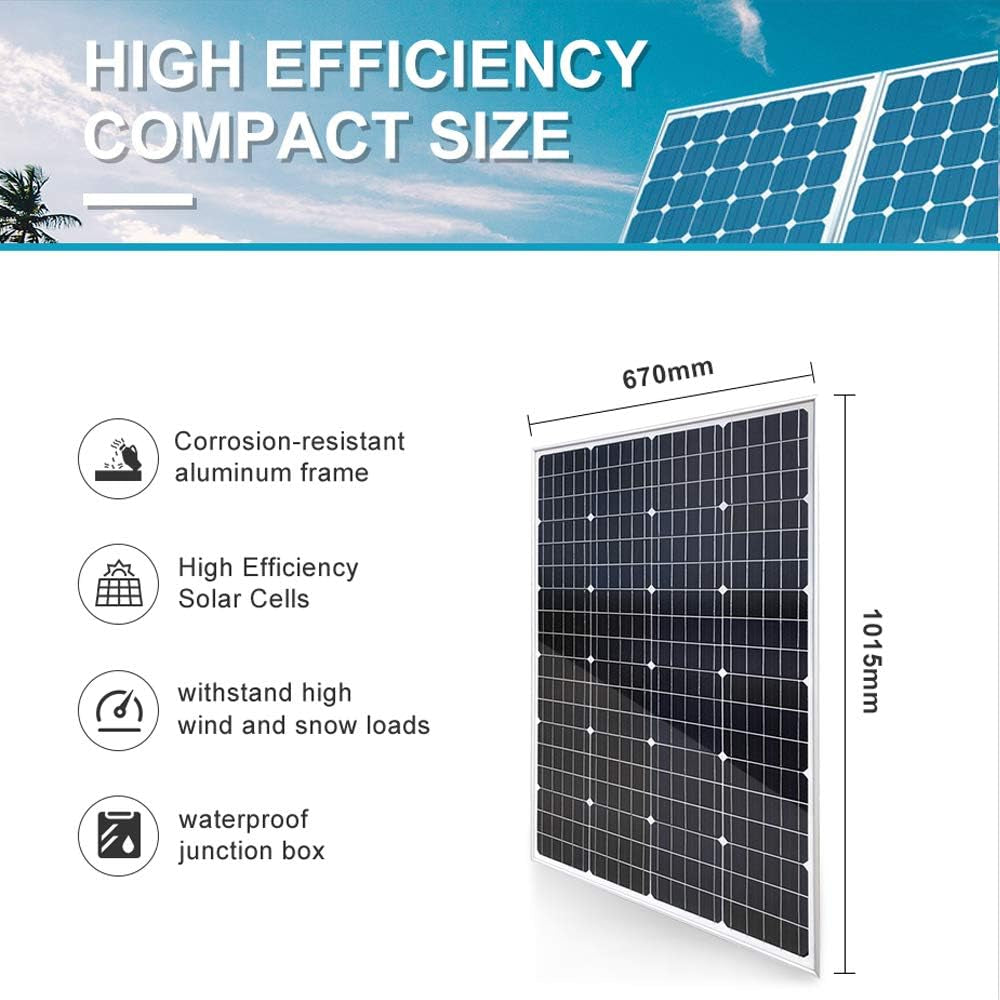

- Dimensions: 1015*670*30mm / 39.96X 26.38 X 1.18 In
- Weight: 15.5 lbs (7KG)
- 90mm of special cable with connectors attached
- Fear of low power in rainy and cloudy weather ? This 1000w Solar Wind Hybrid Complementary System charge 12v battery, Solving the pure solar panel system low efficiency problem in low temperature and strong wind.help you to generate power for remote areas in all seasons and save energy.

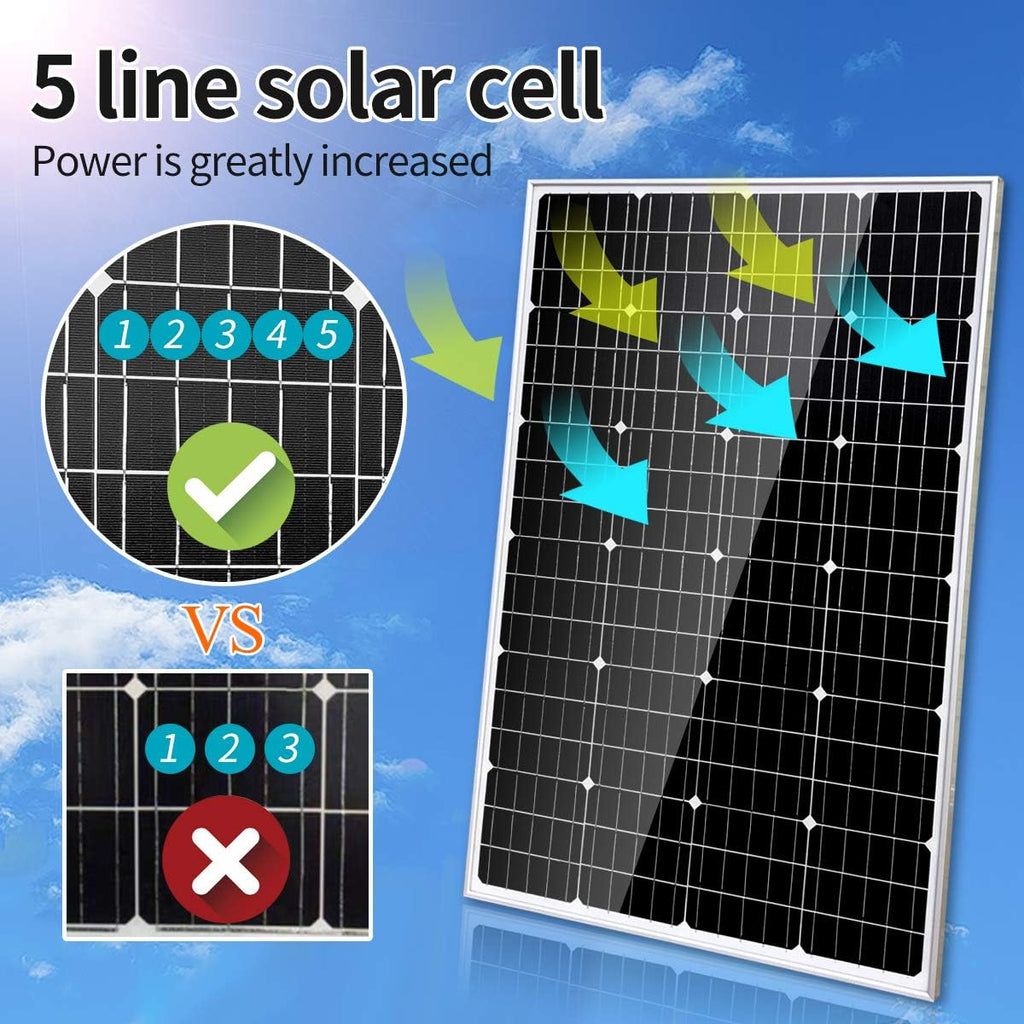

- 120w monocrystalline solar panel, Compared with other 3 grid solar panels on the market, our 5 grid panels is greatly improved in power, the secret of fast charging, sufficient power generation and long Service life.
- 400W wind turbine generator, higher efficiency.Starting wind speed can be as low as 2.5m/s, more powerful.Easy to assemble,Low noise,Hermetically sealed to ensure dust and rain can not intrude into the interior of wind turbine.
- Wind&Solar Hybrid MPPT Controller:with Dump Load,Color Screen Display, the MPPT control algorithm used for fan charging ensures MPPT charging at low wind speed.Fan three-stage charging mode;12V/24V automatically recognizes,protection functions such as overcharge, over discharge and overload;Lead-acid battery, ternary lithium battery, lithium iron phosphate, custom four battery types charging mode to choosing;

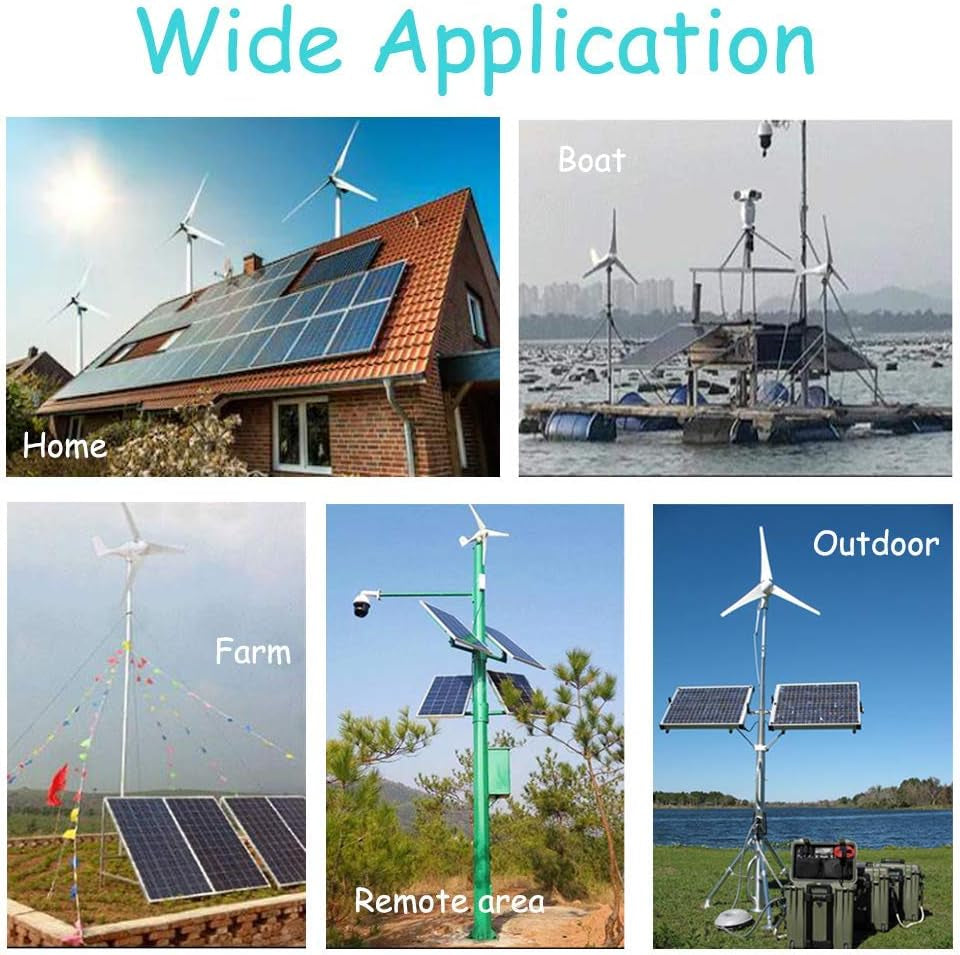

- Perfect for all off-grid installations on Roof,RV,motorhome, house,home,garage,garden,cabin,shed,boats greenhouse,ect.also can be used for any stand-alone off-grid solar power system with batteries, such as a household solar system or solar lighting
